Product Description:
Purchase Protection: 30 Day Money Back Guarantee
Warranty For 6 Months Or 1000 Hours Whichever Comes First
Description – See video listed below

Length To Fork Face 21.49ft in
Ground Clearance 1.67ft in
Width Over Tires 8.26ft in
Overall Height 8.31ft in
Wheelbase 10.67ft in
Height - Top Of Hood 81.12in
Height 8.31ft in
Length - Front Of Tire 17.03ft in
Turning Radius - Over Tires 12.47ft in
Turning Radius Outside Tires 12.47ft in
Wheel Base 10.66ft in
Width 8.25 ft
Length - Fork Face 19.61ft in
Rear - Overhang 4.17 ft
Turning Radius - Over Forks 17.9ft in

Lift
Max Lift Height
44.3ft in G
Max Forward Reach 30.19ft in
Max Load At Max Height 8818.5lb
Max Load At Max Reach 3306.94lb
Max Lift Capacity 8818.5lb

Specifications

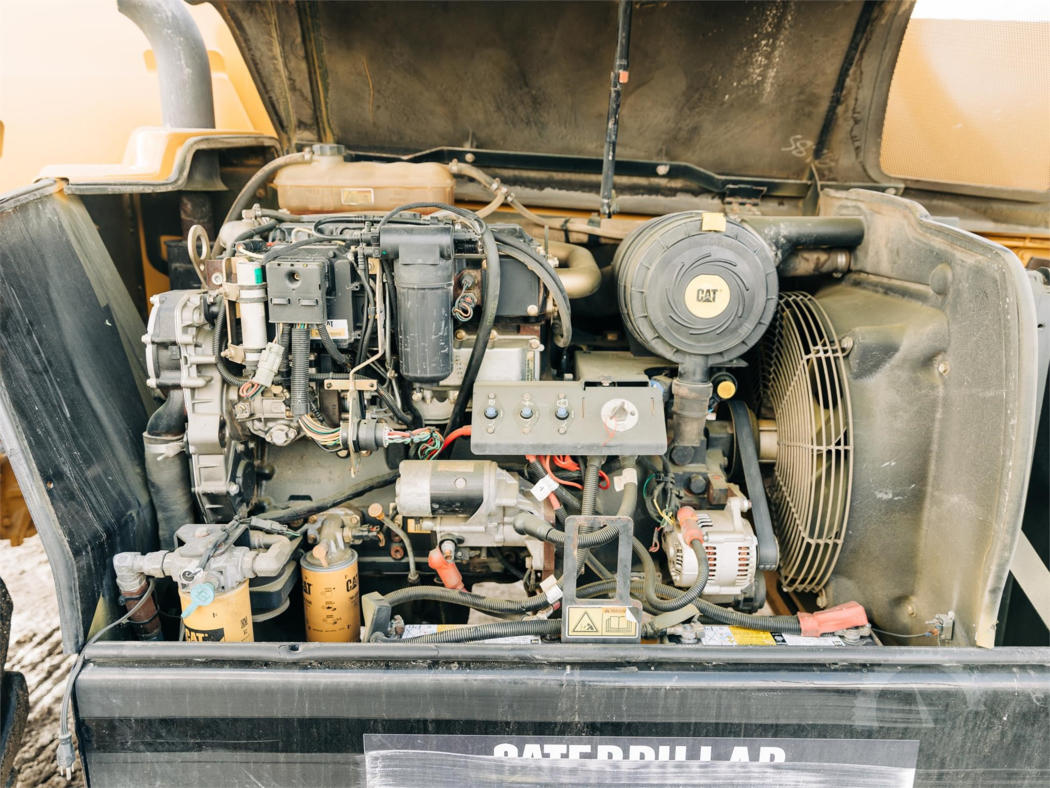

Engine
Engine Make 2236
Engine Model 3054E
Gross Power 99hp
Net Power 94.9hp
Power Measured @ 2200rpm
Max Torque 302.5lb ft
Torque Measured @ 1400rpm
Displacement 268cu in
Bore 4in
Stroke 5in
Engine Model Cat 3054E
Maximum Torque 303lb ft

Operational
Operating Weight 23148.6lb
Fuel Capacity 26.5gal
Hydraulic System Fluid Capacity 17.2gal
Operating Voltage 12V
Alternator Supplied Amperage 90amps

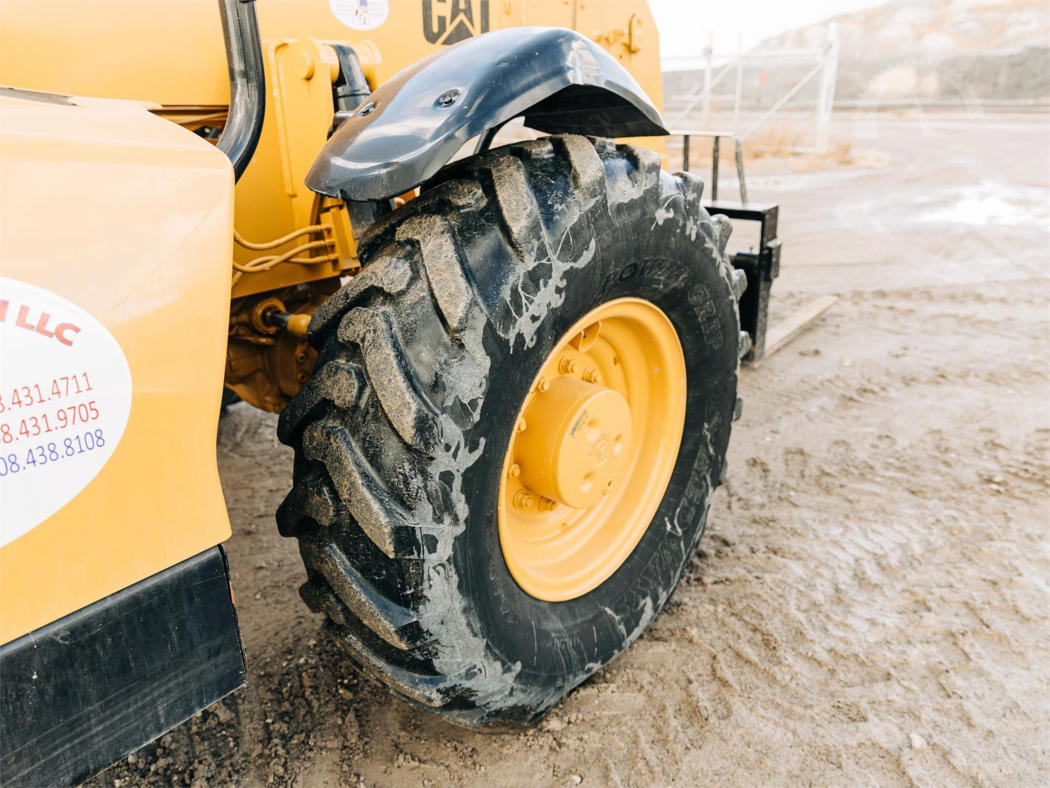

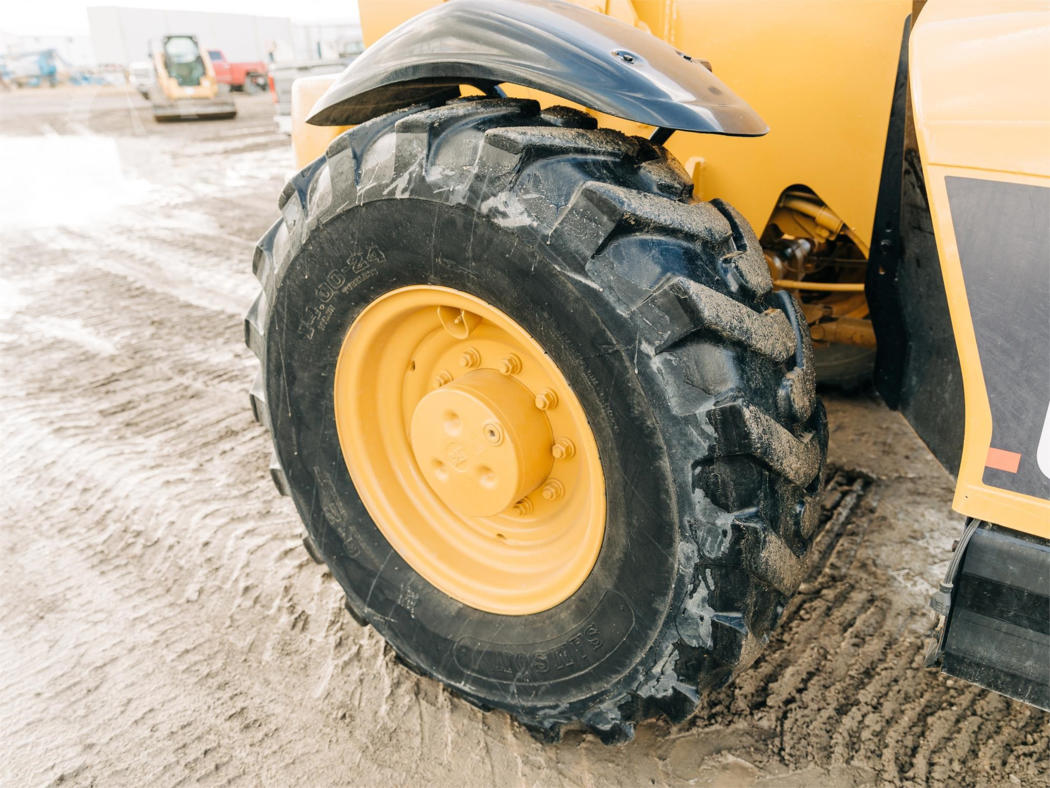

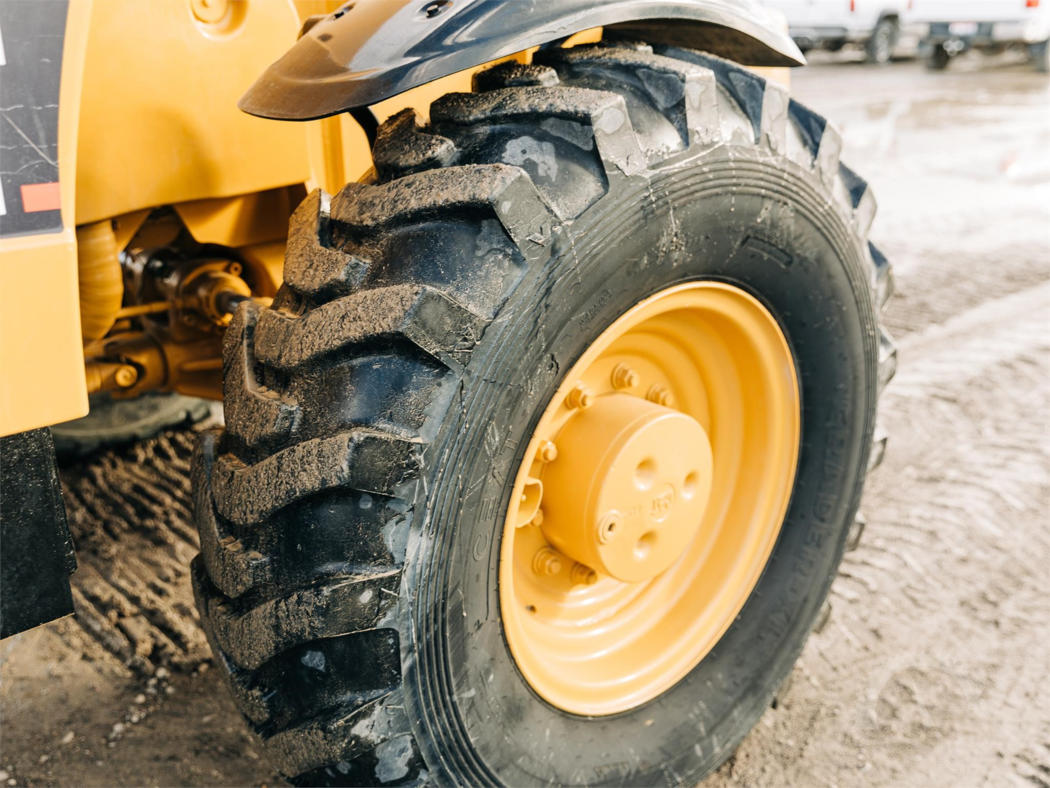

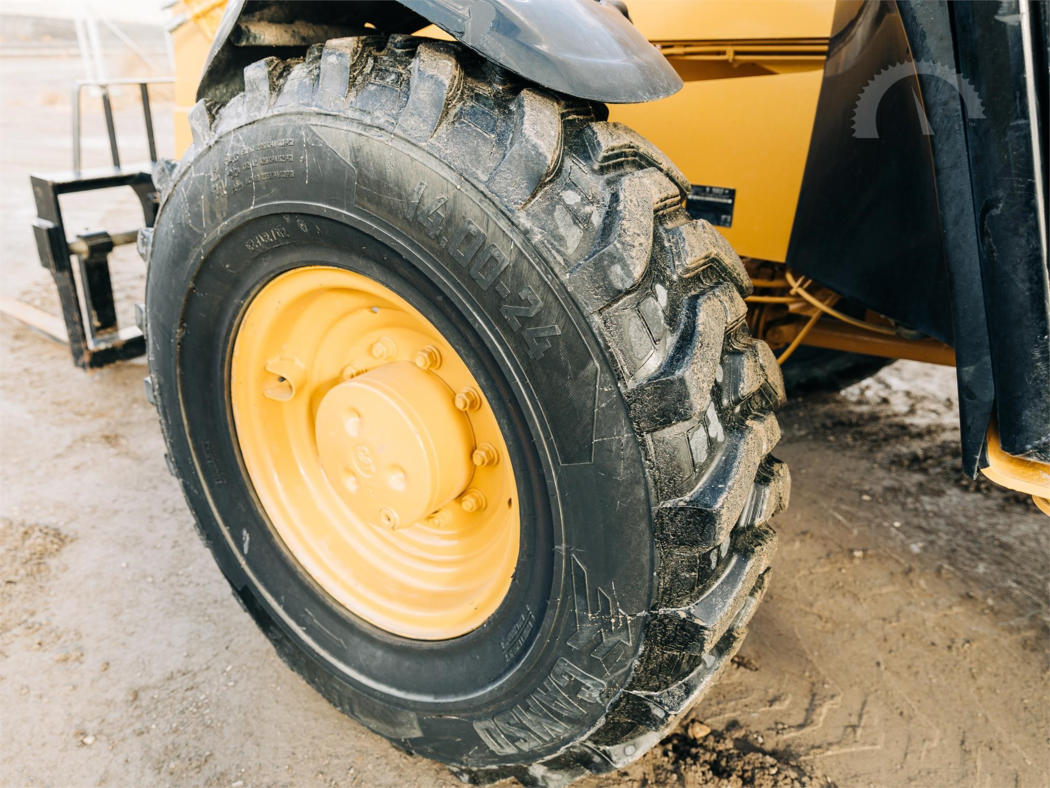

Tire Size 14.00-24

Transmission
Number Of Forward Gears 4
Number Of Reverse Gears 3
Max Speed - Forward 19.9mph
Max Speed - Reverse 12.5mph

Weights
Operating Weight 24978lb

Hydraulic
Pump Type
Variable displacement load sensing axial piston pump
Pump Flow Capacity 29.9gal/min
Relief Valve Pressure 3626psi

Hydraulic System
Pump Type
Variable Displacement Axial Piston Pump
Maximum System Pressure 3625 psi
Maximum Pump Flow 40 gal/min
Auxiliary Hydraulic Supply 24 gal/min

Brakes
Foot Brake 4-wheel
Operating Specifications
Rated Load Capacity 9000lb
Maximum Lift Height 44.3ft in
Maximum Forward Reach 30.2ft in
